AP One AC Mini


  • 802.11ac wave 2 Wi-Fi AP for Business
  • Manageable by InControl 2 – one-stop platform to manage the entire WLAN network, comprehensive reporting and configurations
  • Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
  • Mini Enclosure, 802.3af PoE Input
  • PoE Injector Available Separately

Click here for product datasheet

SKU: APO-AC-MINI Categories: , Tag:


World Smallest 11AC Wave 2 AP

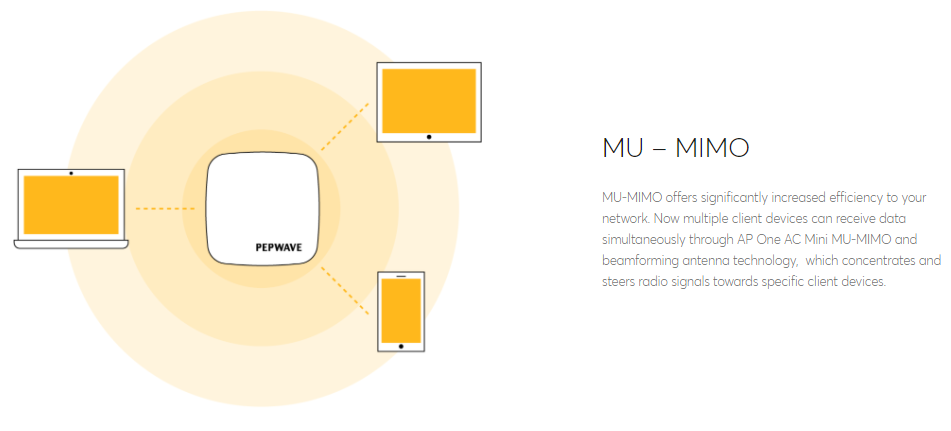

AP One AC Mini is the world smallest 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.


Product Code APO-AC-MINI
WAN Interface 1x GE
Wi-Fi Interface Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
Embedded 4G LTE/3G N/A
LAN Interface N/A
Recommended Users 1-60
Router Throughput N/A
Data Rates 2×2 MIMO, 2.4GHz: 300Mbps or 5GHz: 866Mbps
Disk Drive N/A
Load Balancing & Failover N/A
PepVPN Yes
SpeedFusion Hot Failover N/A
SpeedFusion WAN Smoothing N/A
SpeedFusion Bandwidth Bonding N/A
Number of PepVPN/SpeedFusion Peers 1
PepVPN/ SpeedFusion Throughput N/A
Built-in AP Controller N/A
Maximum Number of AP Support N/A
PoE Input 802.3af
PoE Output N/A

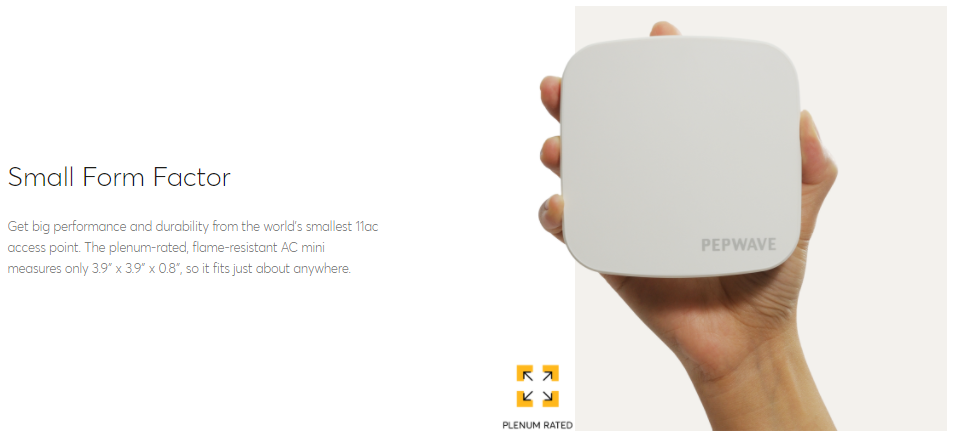

Dimensions 98 x 98 x 19.7 mm
Gross Weight 0.52 kg
Package Content AP One AC Mini
12V2A Power Supply
Mounting Bracket
