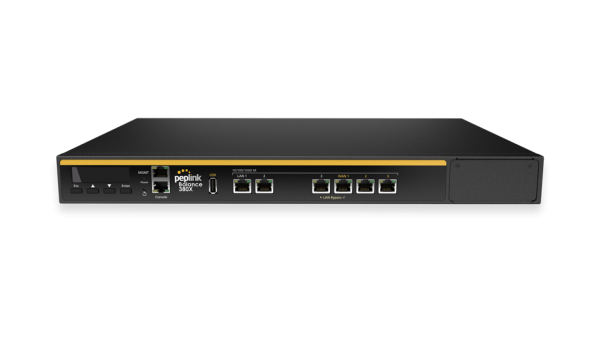

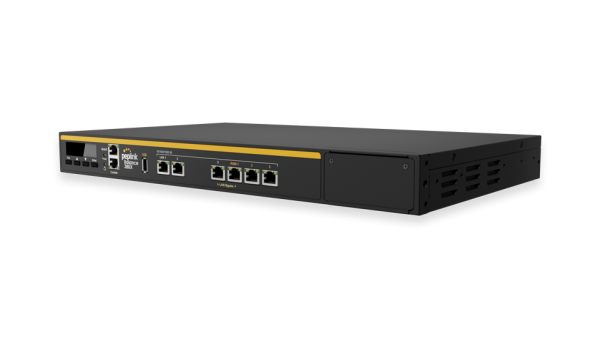

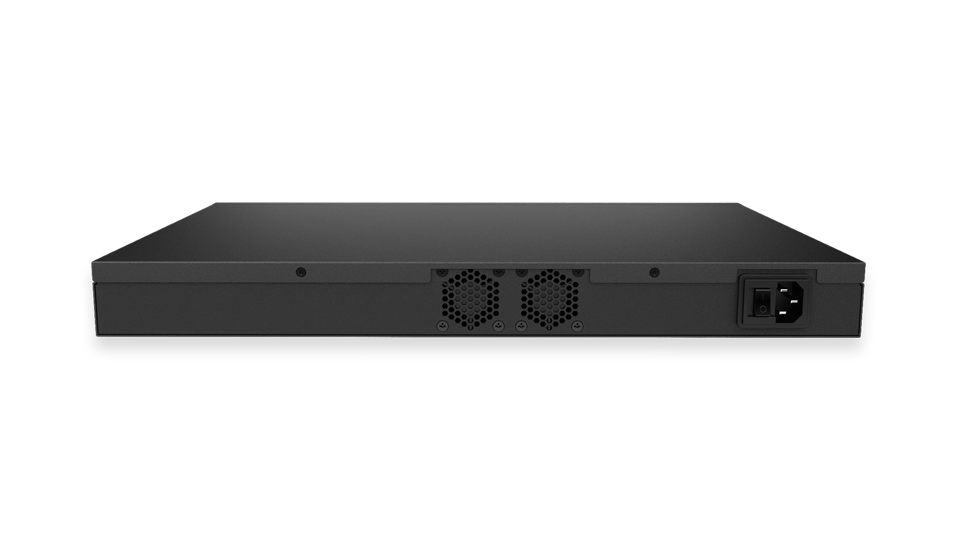

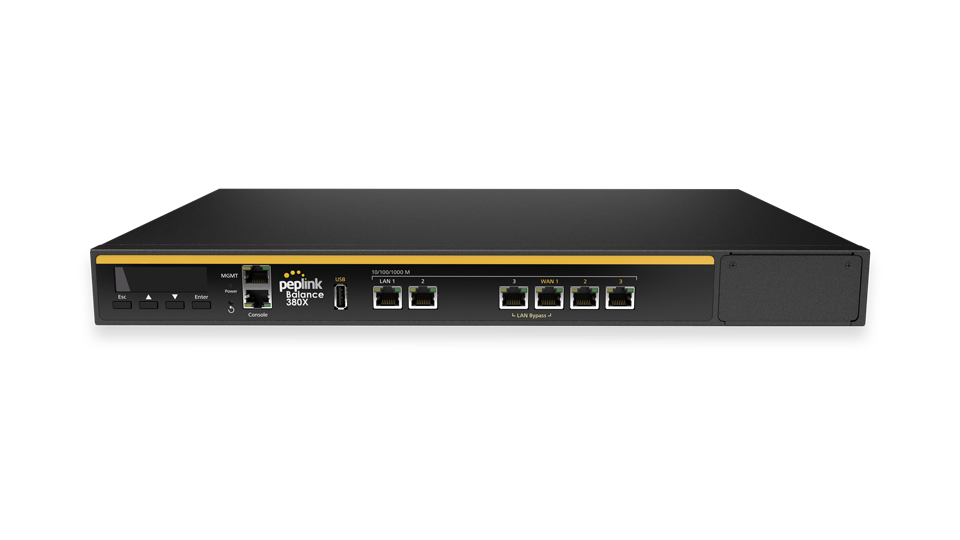

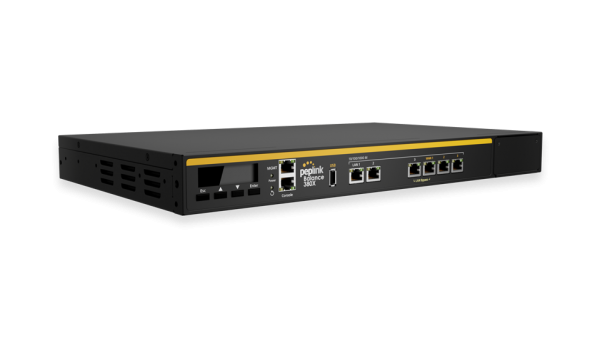

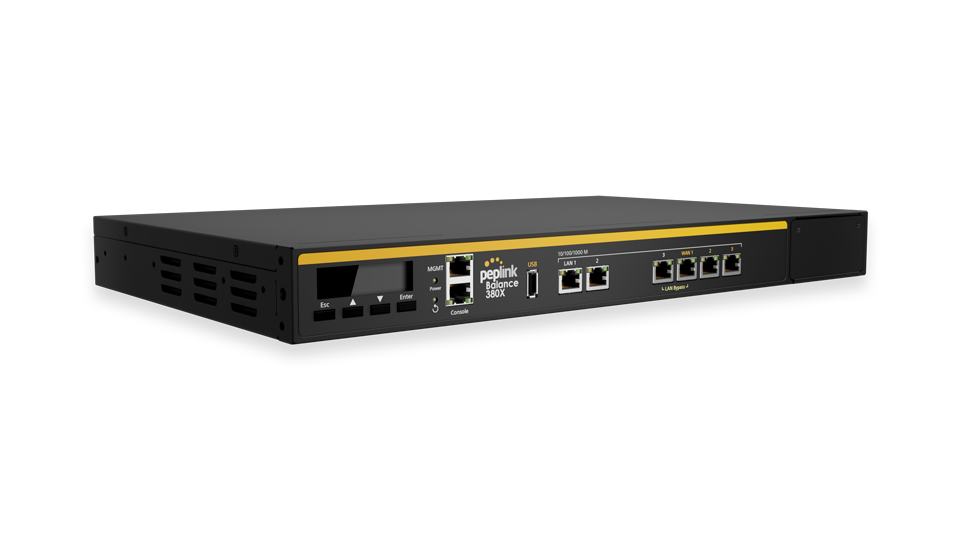

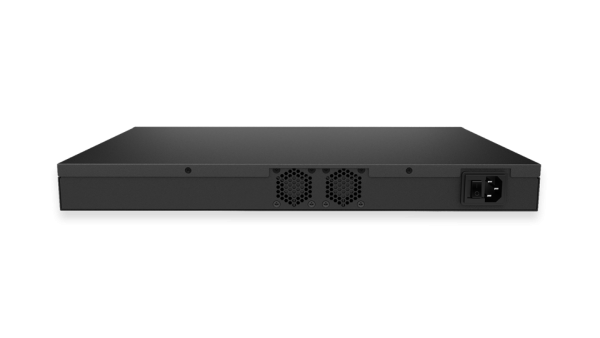

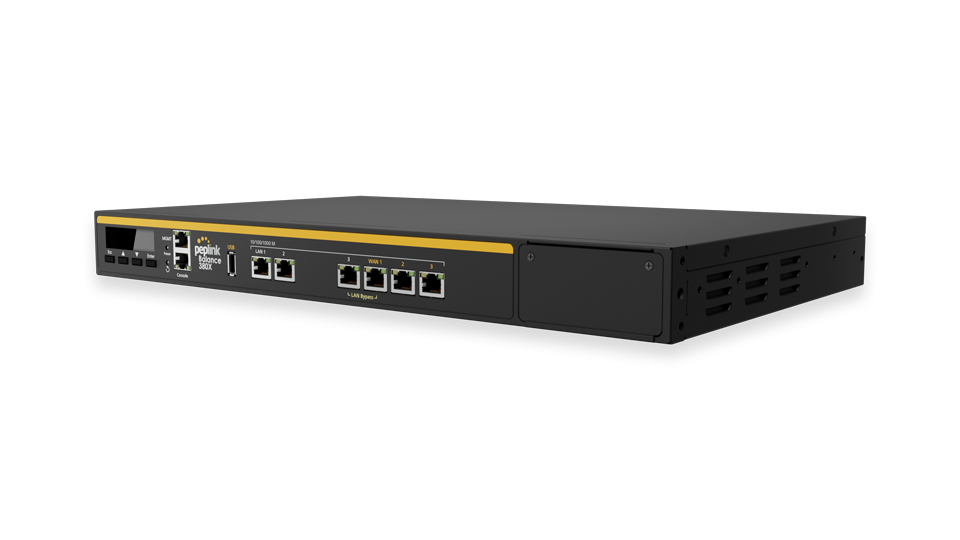

Balance 380X

  • 3x GE WAN ports
  • 3x GE LAN ports
  • 3 Gbps Stateful Firewall Throughput
  • SpeedFusion Bandwidth Bonding available
  • 1x Expansion Module Slot

We are Peplink Gold Partners – Need advice or support with your Peplink installation? Talk to our friendly expert team on 01392 345678 today.


SKU: BPL-380X Category: Tag:


Product Code BPL-380X
Ethernet WAN Ports 3 (GE)
LAN Ports 3 (GE)
USB WAN Modem Port 1
Expansion Modules (option) 1
Embedded LTE Modem No
Recommended Users 50-500
Stateful Firewall Throughput 3Gbps
Load Balancing/Failover Yes
Drop-In Mode Yes
Inbound Load Balancing Yes
SpeedFusion Bandwidth Bonding Yes
Number of SpeedFusion Peers 30/100*
SpeedFusion Throughput 500Mbps
SpeedFusion Throughput (No Encryption) 500Mbps
L2TP / PPTP VPN Server Yes
IPsec VPN (Network-to-Network) Yes
Manage Pepwave AP Yes
Maximum Number of AP Supported 50
Manage Remote AP & Multiple Config Profiles Yes^
Bandwidth Usage Monitor Yes
QoS for VoIP and E-commerce Yes
User Groups Bandwidth Control Yes
Web blocking Yes
Web Filtering Blacklist Full
1U Rackmount Yes
High Availability Yes
LAN Bypass Yes
Dual Hot Swap Power Supply No
Power Input AC Input 100V – 240V
Power Consumption 35W (for the main chassis)
Dimensions 17.3 x 10.4 x1.73 inches / 440 x 265 x 44
Weight 7.3 pounds / 3.3 kg
Operating Temperature 32° – 104°F / 0° – 40°C
Humidity 10% – 85% (non-condensing)
Certifications FCC, CE, RoHS
Warranty 1-Year Limited Warranty
Package Content Balance Router, Power Cord (ACW-614)
1 Pair of Mounting Brackets (ACW-382)

* 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. This can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.

^ Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs. In addition, you can manage remote APs outside the local physical LAN.
