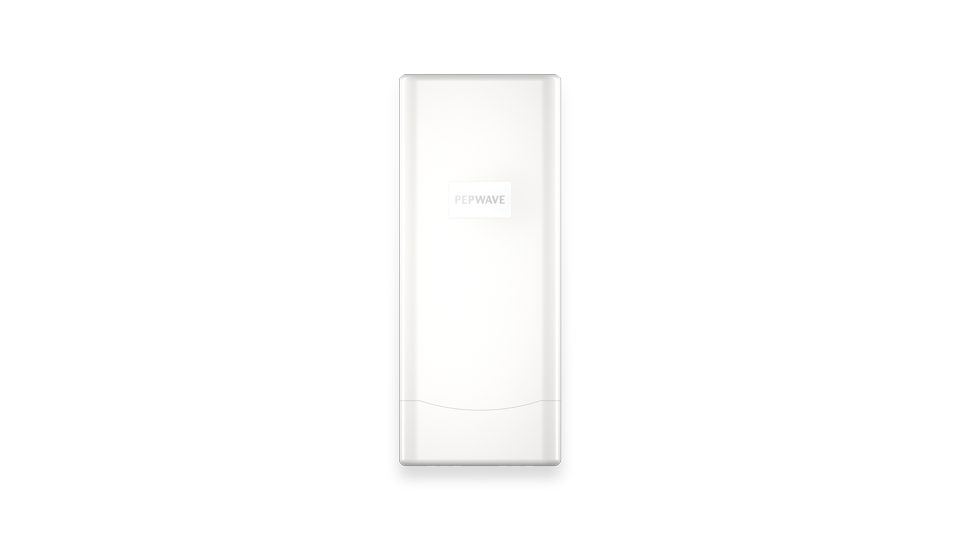

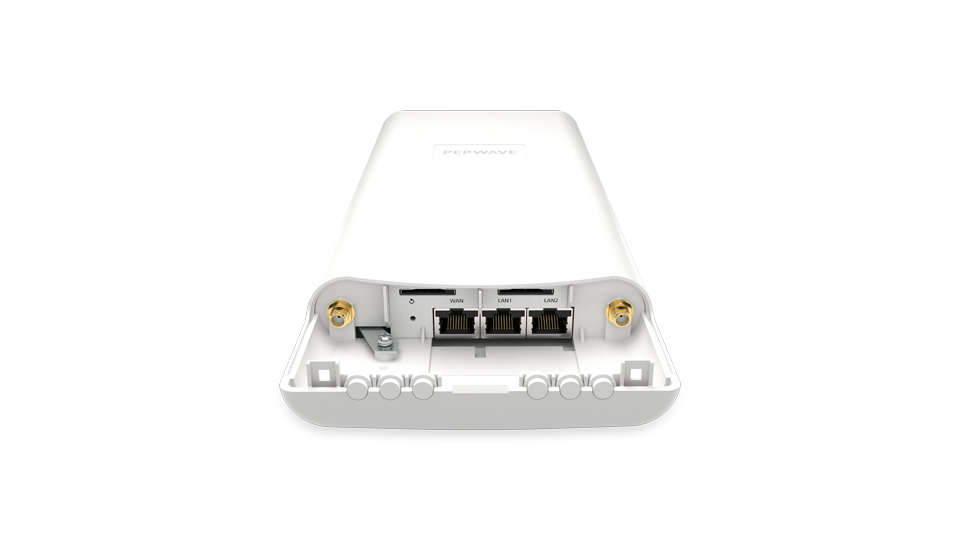

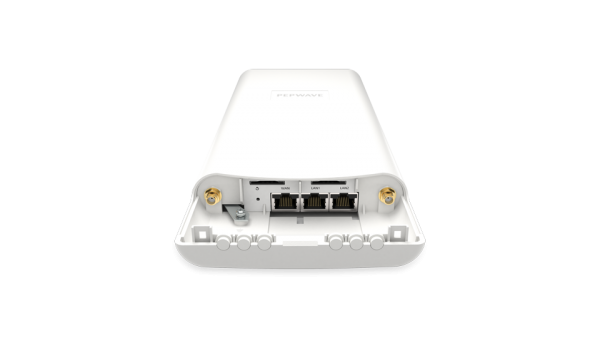

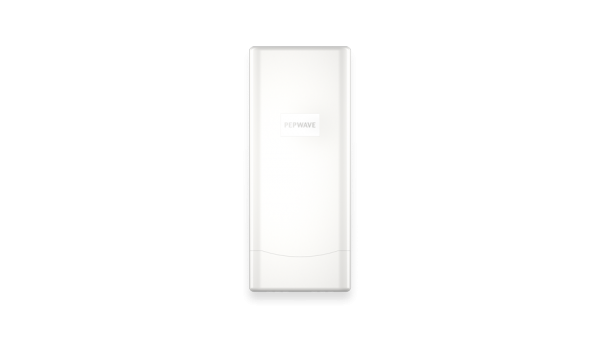

• IP55 Outdoor 4G LTE Router
  • Automatic WAN and IPsec Failover
  • 1x Embedded 4G LTEA Modem (Europe/International/CAT-4)
  • 1x Ethernet WAN
  • 802.11ac wave 2/ac/a/b/g/n Wi-Fi WAN and AP
  • IP55 Enclosure, Passive PoE Input

We are Peplink Gold Partners – Need advice or support with your Peplink installation? Talk to our friendly expert team on 01392 345678 today.


SKU: MAX-BR1-LTE-E-IP55 Category: Tag:


WAN Interface 1x GE
1 x Embedded LTE Modem
LAN Interface 2 (GE)
Wi-Fi Interface 802.11ac wave 2/ac/a/b/g/n Wi-Fi WAN and AP
Antenna Cellular: Build-in/ External SMA Connector Wi-Fi: Build-in Directional/ Omni Software Configuration
Transmit Power (2.4GHz) / (5GHz) 24dBm/ 23dBm
Dual-Band Wi-Fi AP
Maximum number of SSID 16
Recommended Users 1-60
Router Throughput 100 Mbps
PepVPN Yes
SpeedFusion Hot Failover Yes
Drop-in Mode Yes
Number of PepVPN SpeedFusion Peers 2
PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) 40 Mbps / 20 Mbps
802.1q VLANs Supported 16
High Availability Yes
WAN as LAN Yes
Web Filtering Blacklist Lite
Power Input * 802.3at PoE+ 56V Pepwave Passive PoE Input is Needed for full 1x 802.3at PoE+ LAN Output *
Power Consumption Max: 18W, Typical: 11W, Min: 8W
Dimensions 11.8 x 4.9 x .1.75 inches | 300 x 124 x 44.5 mm
Weight 0.96 pounds | 435 grams
Operating Temperature -40 ° – 149 °F | -40 ° – 65 °C
Certifications CE, RoHS
Warranty 1-Year Limited Warranty


*PoE injector and AC power adapter are available separately.
