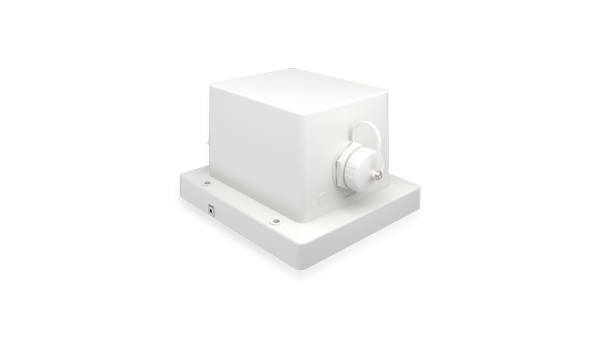

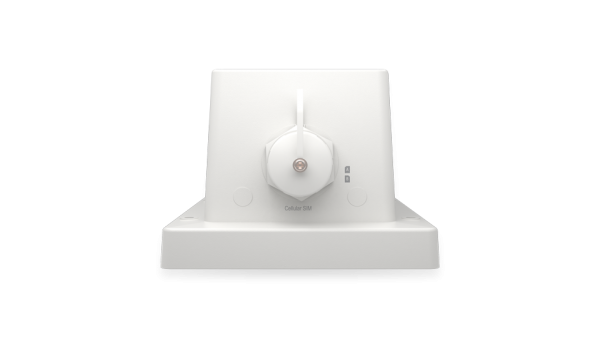

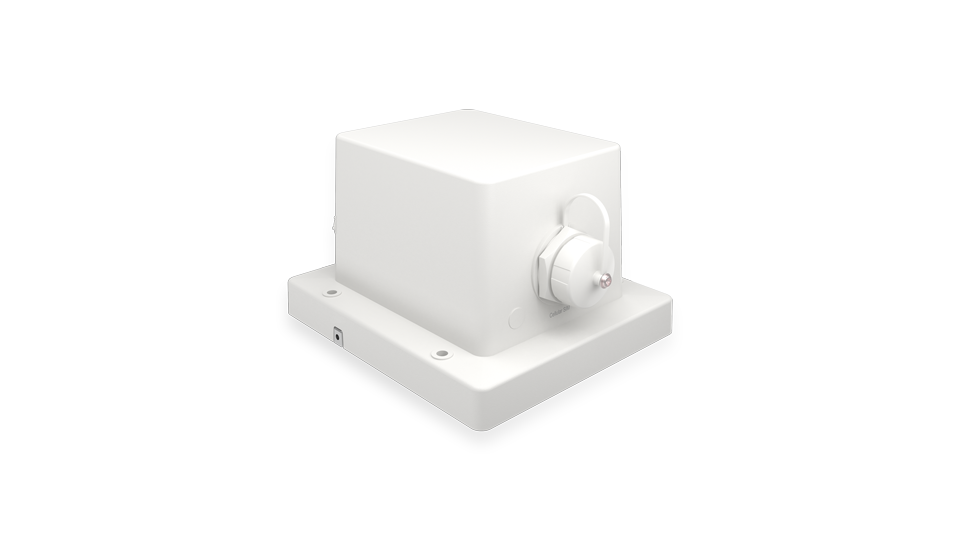

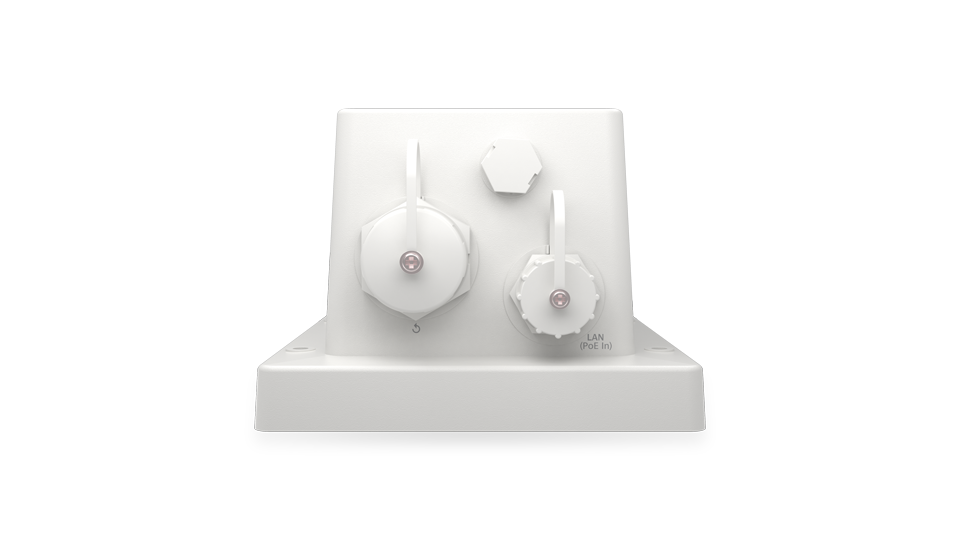

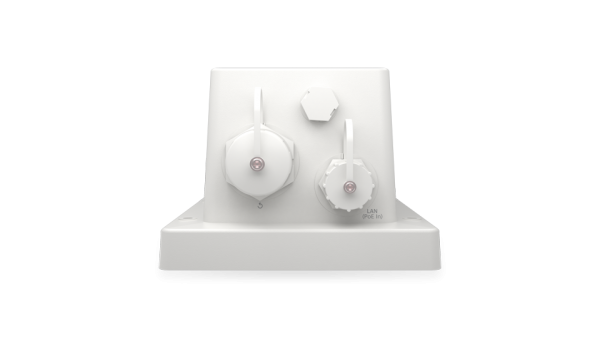

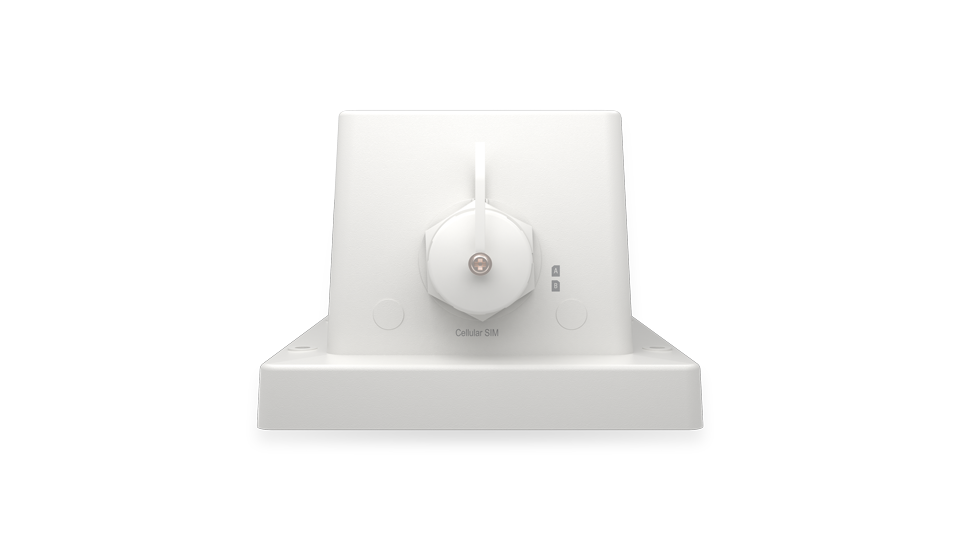

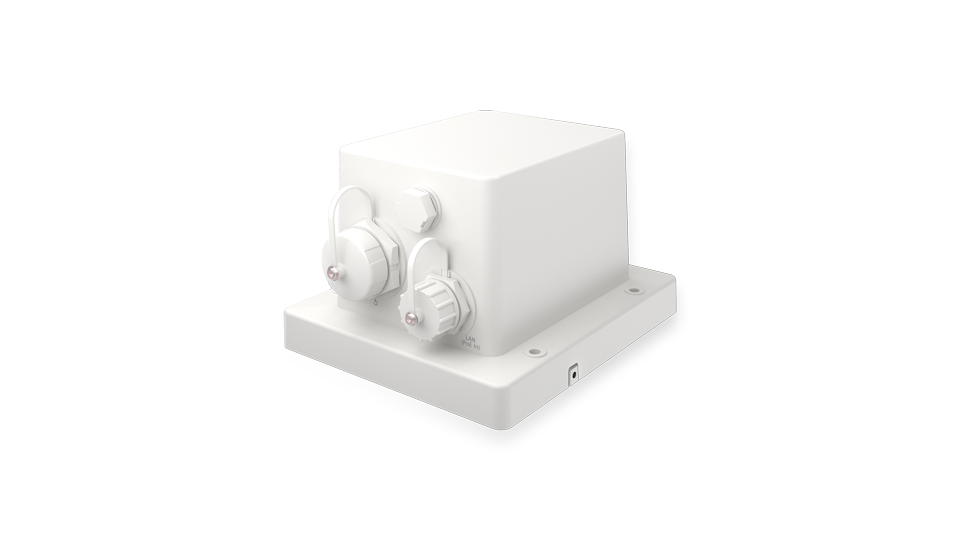

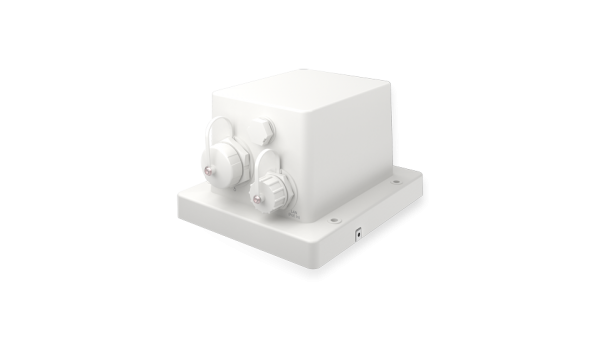

• Industrial-Grade Outdoor LTEA Router
  • Hot Failover Included
  • IP67 Enclosure

Click here for product datasheet

We are Peplink Gold Partners – Need advice or support with your Peplink installation? Talk to our friendly expert team on 01392 345678 today.


SKU: MAX-BR1-LTEA-W-IP67 Categories: , Tag:


WAN Interface 1x Embedded LTEA Modem with Redundant SIM Slot
LAN Interface 1x 10/100M Ethernet Port
Wi-Fi Interface 802.11b/g/n Wi-Fi WAN or AP
Drop-in Mode No
GPS Antenna Integrated
Included Antenna Built-In Omni Antenna
Wi-Fi Antenna gain: 5dBi for 2.4GHz,
Cellular Antenna gain: 3dBi for 2.4GHz
Recommended Users 1-60
Router Throughput 100 Mbps
Number of PepVPN SpeedFusion Peers 2
PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) 40 Mbps / 20 Mbps
Power Input 802.3af PoE, 48V Passive PoE
Power Consumption 12W (max.)
Dimensions 5.55 x 6.38 x 3.98 inches |
141 x 162 x 101 mm
Weight 680 g | 1.50 lb
Operating Temperature -40° – 149°F | -40° – 65°C
Certifications FCC, CE, RoHS, IC
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty
Package Content MAX BR1 IP67, 1 x Waterproof Ethernet Connector Kit
