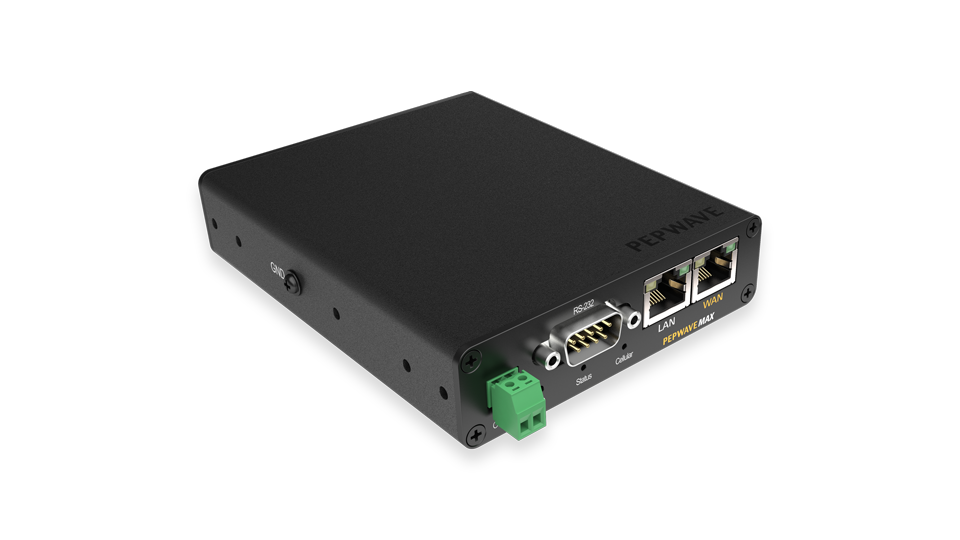

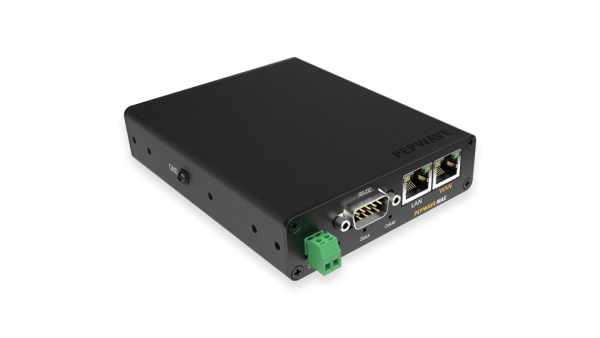

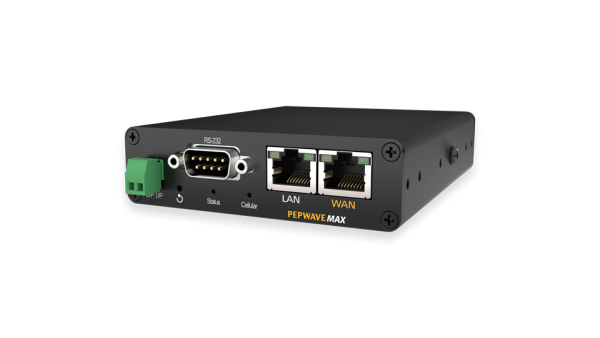

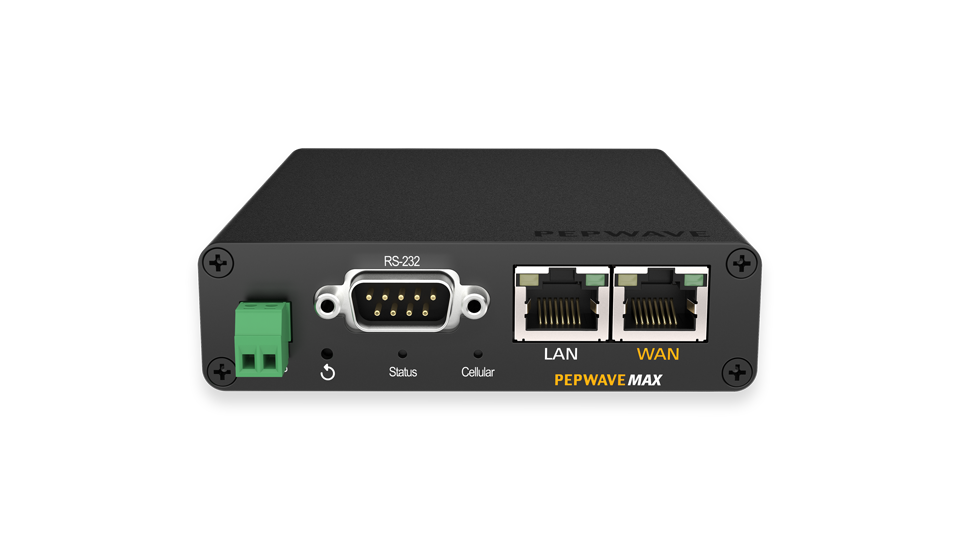

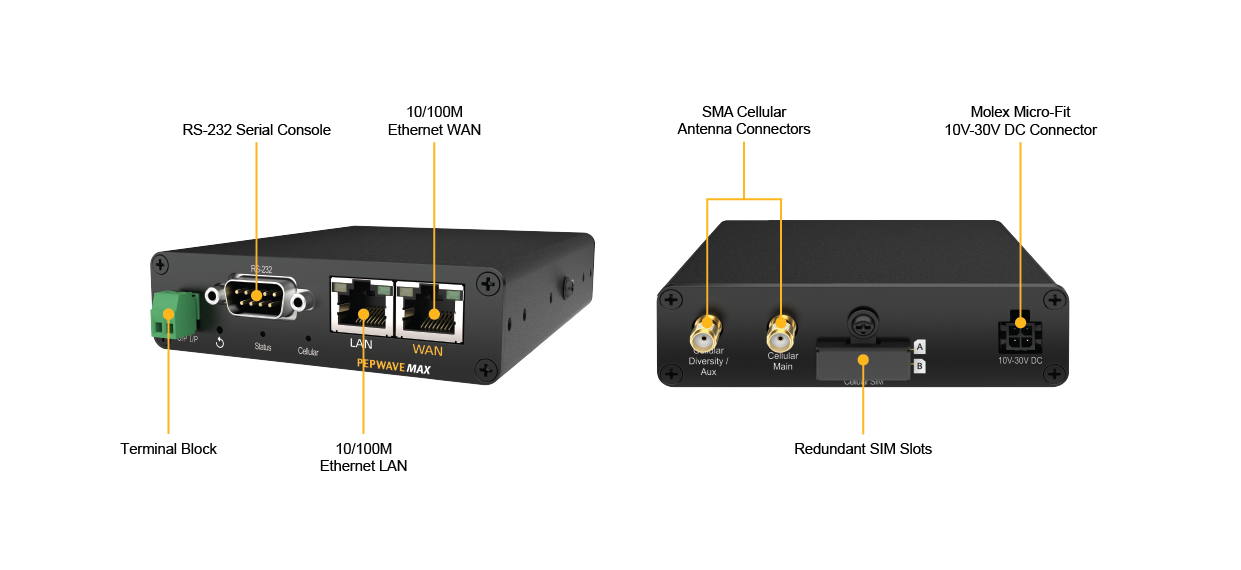

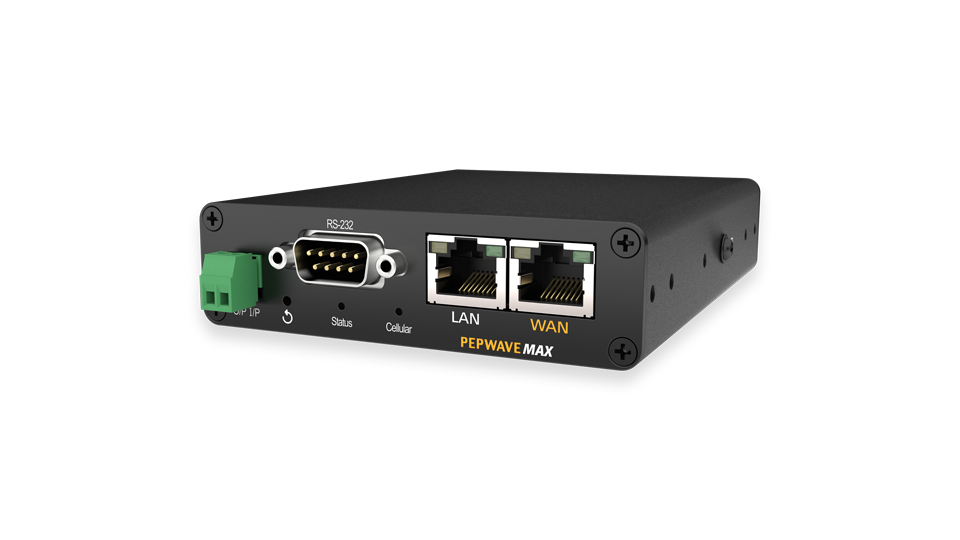

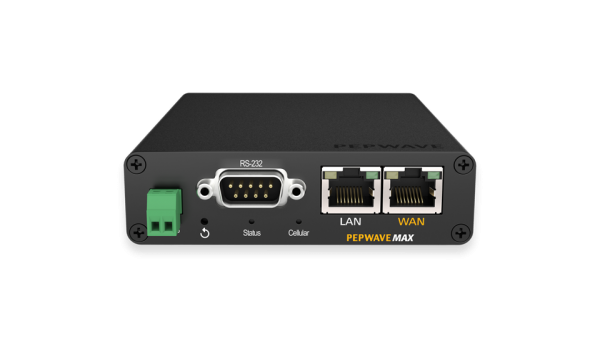

• Dedicated for M2M Deployments
  • 1x Embedded 4G LTE Modem (Europe/Int’l GSM/ CAT-4)
  • 1x 9-pin serial connector
  • 1x Ethernet WAN

Click here for product datasheet

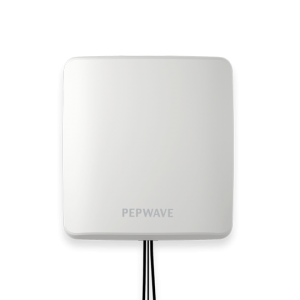

Recommended antenna: Mobility 20G or IoT 20G

We are Peplink Gold Partners – Need advice or support with your Peplink installation? Talk to our friendly expert team on 01392 345678 today.


Out of stock

SKU: MAX-BR1-M2M-LTE-E-T Categories: , Tag:


Ethernet WAN Ports 1 (FE)
Ethernet LAN Ports 1x FE
Embedded 4G LTE 1
Redundant SIM Slots Yes (( Mini-SIM (2FF))
Recommended Users M2M
Router Throughput 100 Mbps
PepVPN Yes
SpeedFusion Hot Failover Yes
Drop-in Mode Yes
Number of PepVPN SpeedFusion Peers 2/5 *
PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) 40 Mbps / 20 Mbps
802.1q VLANs Supported 16
IP Passthrough Yes
Web Blocking Yes
Web Filtering Blacklist Lite
Power Input DC 10V-30V, 2A
AC Adapter AC Input 100V-240V
DC Output 12V, 2A
Power Consumption Max.: 10W, Typical: 8.5W, Min.: 6W
Dimensions 4.8 x 3.8 x 1.1 inches |
120 x 97 x 26mm
Weight 0.8 pound |
350 grams
Operating Temperature -40° – 149°F |
-40° – 65°C
Certifications -FCC, CE, RoHS
-EN 61373 Shock and Vibration Resistance
Warranty 1-Year Limited Warranty


*2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
