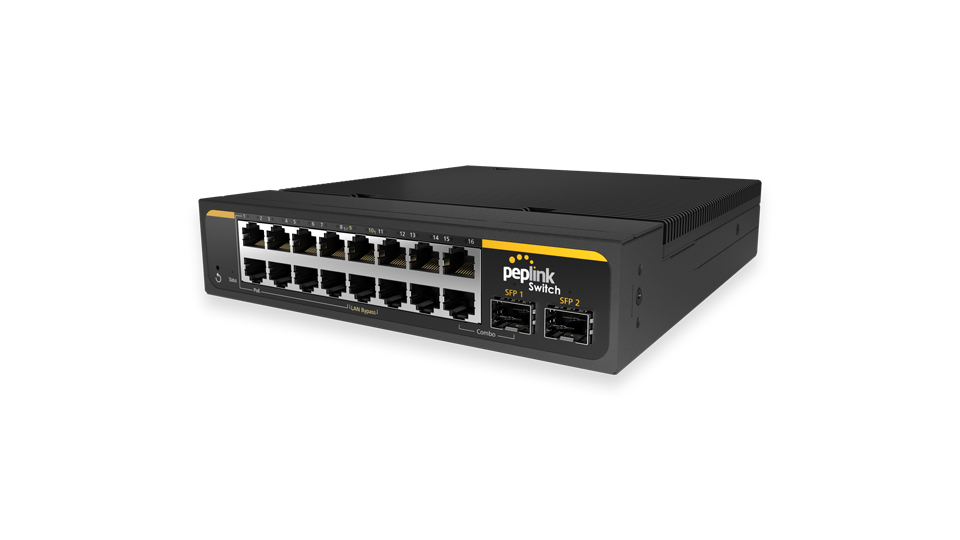

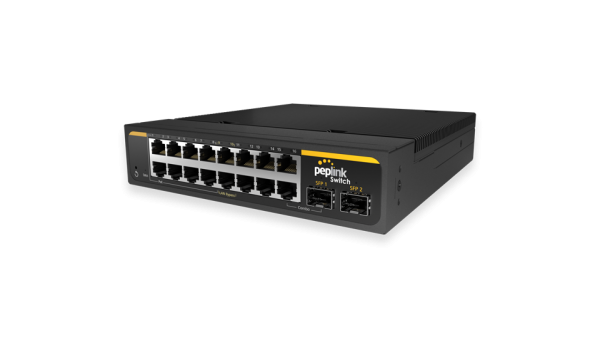

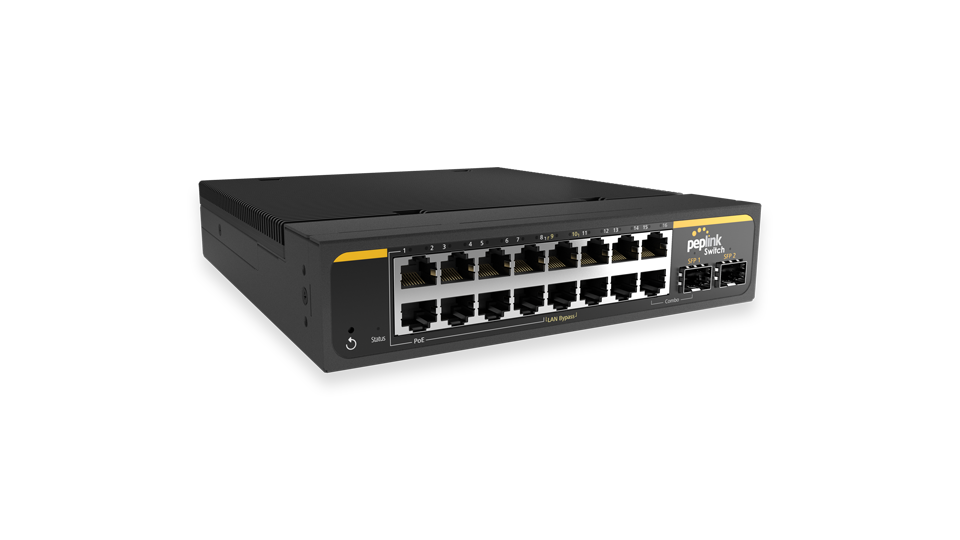

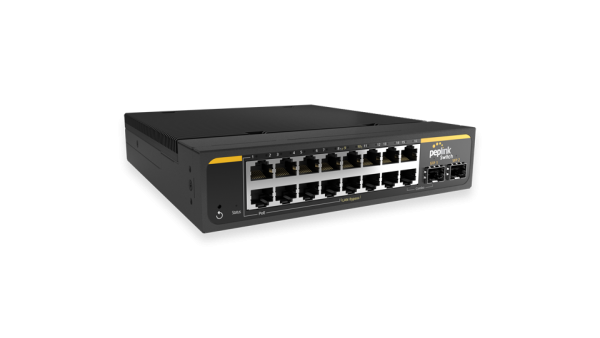

Peplink SD Switch 16-Port Rugged


  • Cloud Managed Switch

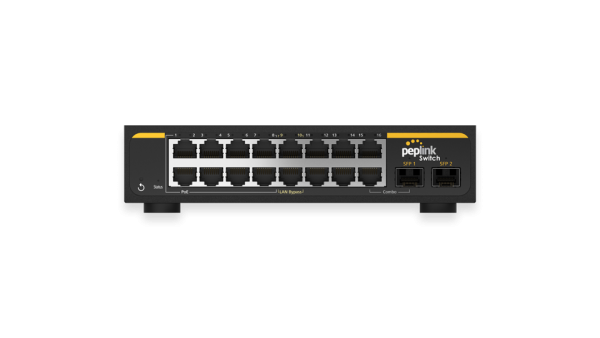

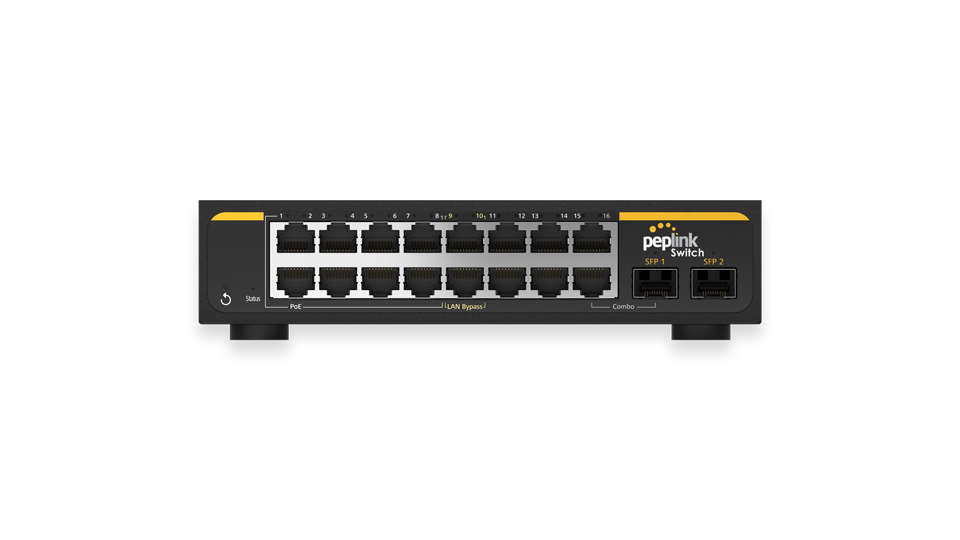

  • 8x 802.3at (PoE+) GE Ports, 8x GE Ports, 2x SFP Ports
  • 2 x Fiber 1G SFP Ports
  • Power budget: 90W (Upgradable to 240W via ACW-623)

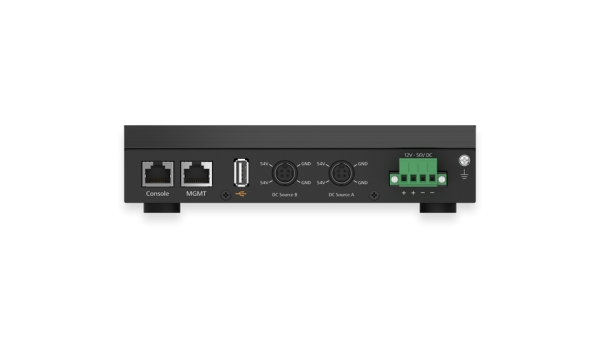

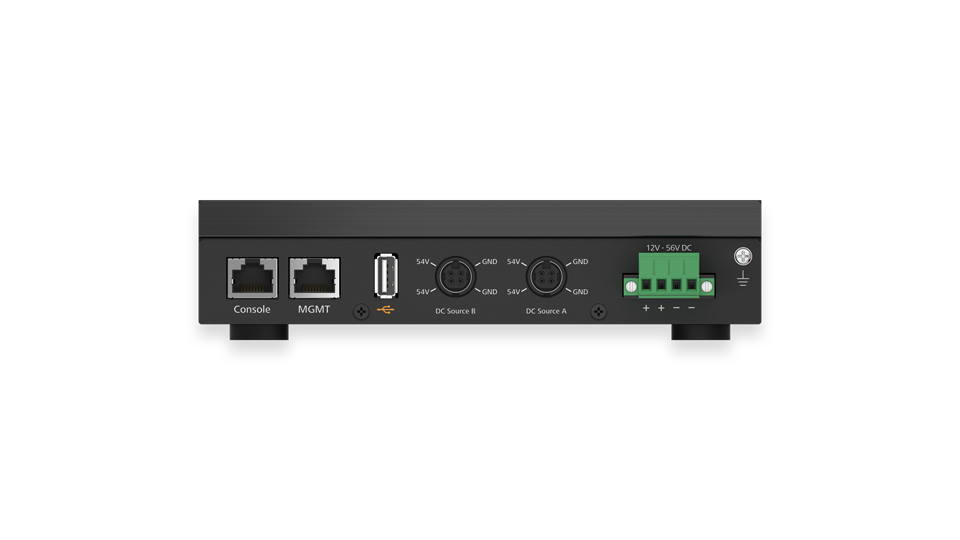

  • 2 x DC Power (DIN Connector), 1x Terminal Block
  • InControl2 Cloud Management
SKU: PSW-16-240W-RUG Categories: , Tag:


LAN Interface 8x 802.3at (PoE+) GE Ports,
8x GE Ports,
2x SFP Ports
VLAN Groups Yes
Fiber Module 2x 1 Gbps
Switch Capacity 36 Gbps
Max. Packet
Forwarding Rate
26.8 Mpps
MAC Address Table 8,000
Inter-VLAN Routing No
AC Adaptor AC Input 100V-240V
DC Output 54V^
Power Input DC Power DIN 2x 54V
Terminal Block: 12V – 56V DC
20W System,
90W PoE+ Power Budget
(supports up to 240W^ )
(L x W x H)
7.5 x 9.0 x 1.5 inches |
190 x 226 x 35 mm
Weight 4.4 pounds |
2.0 kg
Operating Temperature -40° – 149°F |
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certification FCC, CE, RoHS, E-Mark, IC
EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
EN 50155: Railway Applications
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty


^The bundled PSU provides 90W of PoE power budget. If you require 240W of power budget, please add 180W PSU (ACW-623) to your device.
