Peplink SD Switch 24-Port Rugged


  • Cloud Managed Switch
  • 802.3at on all 24 Ports
  • 2 x Fiber 10G SFP Ports
  • Power budget: 120W (Upgradable to 250W via ACW-623)

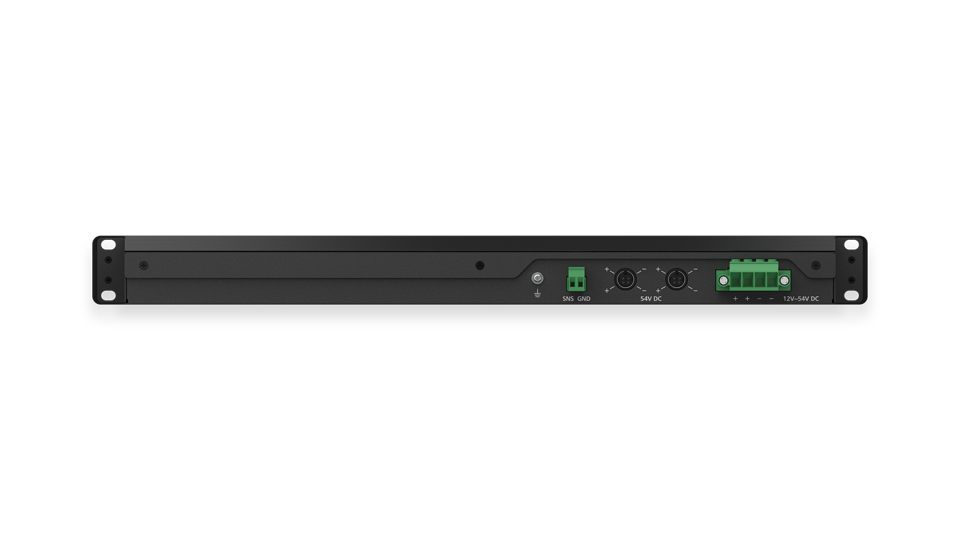

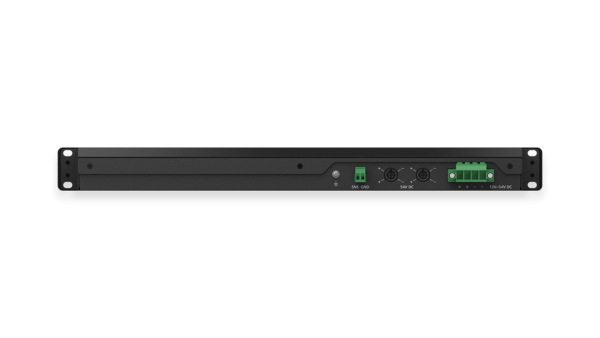

  • 2 x DC Power (DIN Connector), 1x Terminal Block
  • InControl2 Cloud Management

Available on back-order

SKU: PSW-24-250W-RUG Categories: , Tag:


LAN Interface 24x 802.3at (PoE+) GE Ports,
2x SFP+ Ports
VLAN Groups Yes
Fiber Module 2x 10 Gbps
Switch Capacity 88 Gbps
Max. Packet
Forwarding Rate
66 Mpps
MAC Address Table 32,000
Inter-VLAN Routing Yes
AC Adaptor AC Input 100V-240V
DC Output 54V*
Power Input Redundant DC Power DIN: 54V
Terminal Block: 12V – 54V DC
50W System,
120W PoE+ Power Budget
(supports up to 250W * )
(L x W x H)
10.5 x 19.1 x 1.7 inches |
265 x 485 x 45mm
Weight 11.3 pounds |
5.14 kg
Operating Temperature -40° – 149°F |
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certification FCC, CE, RoHS, IC #
EN 61000: Electromagnetic Compatibility #
Warranty 1-Year Limited Warranty


* The bundled PSU provides 120W of PoE power budget. If you require 250W of power budget, please add 180W PSU (ACW-623) to your device.
# Pending certification.
